Product information

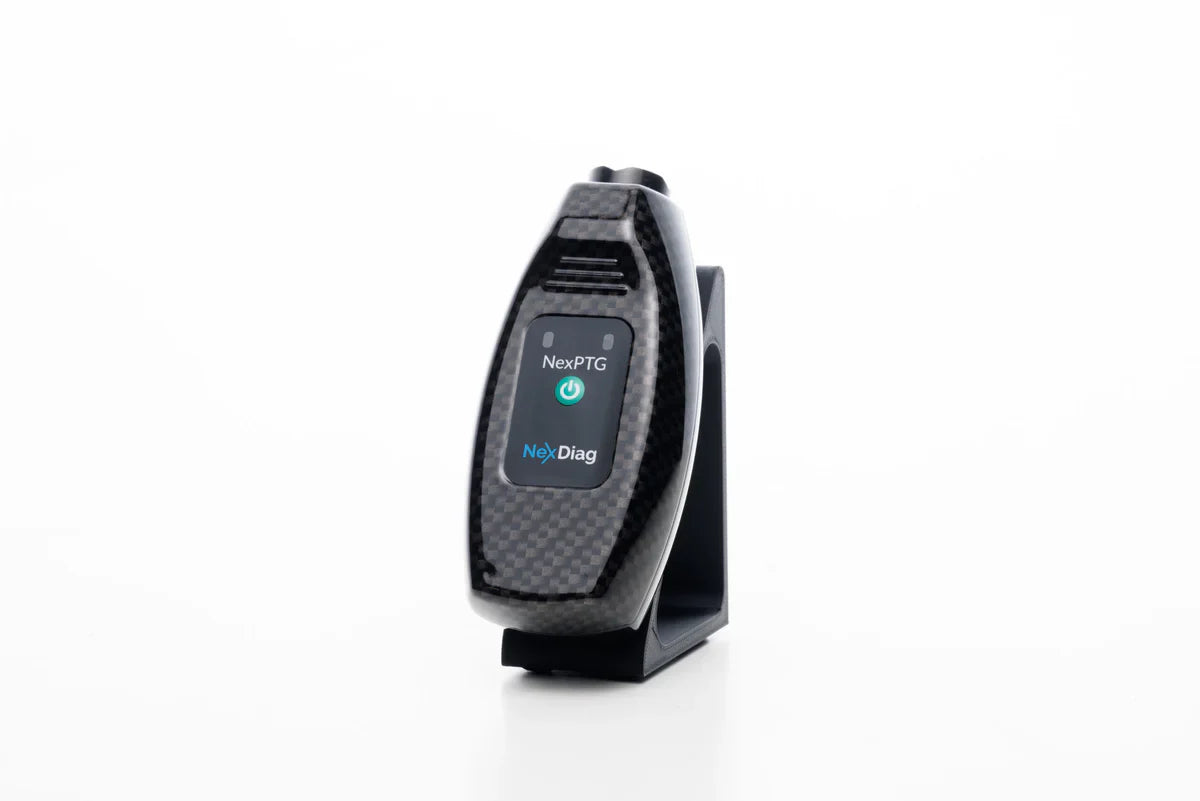

The NexPTG PRO Carbon is the newest model from NexDaig and comes with the most functionalities, innovative features that are not available on other models. NexPTG PRO Carbon has a dedicated reporting system, which allows you to present your readings to the customer in a more accessible way. All measurements are placed in tables and compared with each other using the symmetric measurement table. Both external and internal components can be measured. These measurements can be customized to specific locations on the vehicle to give you an accurate before and after and overall history of the paintwork; the only such application on the market.
The app exclusively works with PRO Carbon devices which can be found on Android or IOS and compatible Smartwatches will allow you to:
- Automatic search and connection with the NexPTG device
- Indicating the measurement value, substrate detection, measurement interpretation
- Creation a short history of measurements and browsing it
- Insight into measuring statistics
- Calibration of the NexPTG device
- New standard & dedicated car bodies
- Voice command control
- New layout
- QR, EAN, OCR reader
- Smartwatch application
Minimum system and hardware requirements for the NexPTG mobile application:
- Android 5.0 or later, Bluetooth with Bluetooth Low Energy
- System iOS 11 or later, iPhone 6s or later
- Smartwatch: with Wear OS or WatchOS system
Kit Contains:
- NexPTG PRO Carbon
- Dedicated tool case with calibration set
- User Guide
- Calibration Certificate (The calibration certificate prepared by an external, accredited certifying company is intended to confirm the parameters declared by the manufacturer (Nexdiag) for each NexPTG PRO carbon meter.)
Technical:
- Range of measurement: 0 - 3000 μm (0 - 118.11 mils)
- Measurement resolution: 1 μm (0,04 mils)
- Type of probe / Probe ending: Movable / Spherical
- Probe housing: Profiled
- Curve measurement: Yes
- Measurement memory: Up to 8000*
- Substrate recognition: Steel, Galvanized Steel, Aluminum,
- Certificate: Yes
- Zinc detection **: Up to 1000 μm
- PAS - Paintwork Analysis System: Extended ver. 2
- Voice commands: Yes
- Types of bodies in the report: Individual
- Dedicated vehicle body: Yes
- Works with Smartwatches: Yes
- VIN code reader: Yes
- Warranty: 3 years
- Individual layout: Yes
- Multilingual menu: PL, EN, DE, RU, CZ, FR, ES, IT, FE, HE, NL, NO, TR, HU, SA, JP
- Suggested measurement points: Yes
- Generating reports and measurement history: Yes with email export
- Number of measurements per second: 10
- Time of continuous work on alkaline batteries: Up to 100h
- Ambient temperature for the gauge's work: From -20 to + 40 °C
- Unit of measurement: μm or mils
- Communication with the application: Bluetooth 4.0 LE
- Message indication: Text, graphic, audio
- Housing colour: Carbon
- Weight: 58 grams
- Size: 112 x 50 x 28 mm
- Availability on systems: Android, iOS
- Measurement modes: Continuous, Single
- Testing relative to reference point: Yes
- Automatic device shutdown in period of inactivity: Yes
- Measurement statistics: Yes
- Enrichment with new features: Yes
- API communication: Yes
- Dedicated API (additionally paid): Yes
